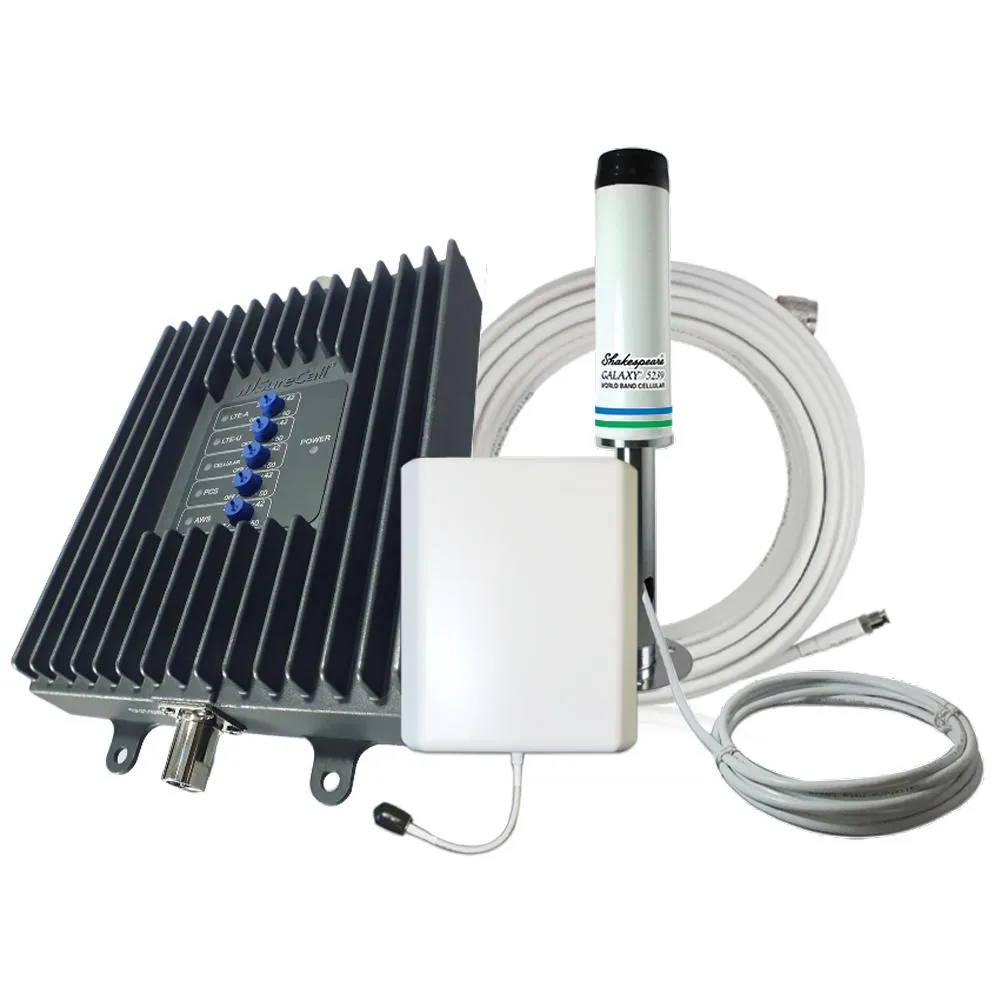

Super Halo Cell Booster - AT&T, T-Mobile, Verizon - 2G,3G & 4G
The Super HALO is a marine grade 2G, 3G and 4G voice and data cellular reception solution. Its 5-band compatibility makes it compatible with AT&T, T-Mobile and Verizon networks. The Super HALO is optimized to boost cellular reception for your boat, car, recreational vehicle, home or AnyWhere® else, with support of 10 users simultaneously and an indoor antenna to direct the signal where you really need it.
Features:
- Five band - Works with AT&T, T-Mobile and Verizon 2G, 3G, & 4G networks
- Stealth technology - Uplink becomes dormant while not in use to save power
- Automatic gain control (AGC) - Does not overpower or interfere the cell sites
- Automatic shutdown - Energy efficient and does not interfere with the cell sites
- Manually adjustable gain - Flexibility in antenna placement and fine-tuning the system
- High quality metal construction - Durable and resilient
- FCC certified - Safe and legal
Specifications
Frequency- Uplink (Downlink) MHz
698-716 (728-746) / 776-787 (746-757) / 824-849 (869-894) / 1850-1915 (1930-1995) / 1710-1755 (2110-2155)
Input / Output Impedance
50ohm
Maximum Gain
50dB
VSWR
≤ 2.0
Standard Supported
CDMA, WCDMA, GSM, EDGE, HSPA , EVDO, LTE and all cellular standards
Throughput
100 Mbps
Noise Figure
5dB
Connectors
FME Male (both ends)
Power Supply / Consumption
5-15VDC, 2.1A Max. @ 12 VDC
Dimensions
7-7/8 in x 5 in x 1-3/16 in (20cm x 12.7cm x 8.09cm)
Weight
2lbs 3oz (1.04kg)
RoHS Compliant
Yes
FCC ID (USA)
RSNMOBILE5
Specifications:
- Voltage - Input Range (Volts): 9-20v
- DB Gain (dB): 50dB
- Box Dimensions: 8"H x 11"W x 12"L WT: 10.5 lbs
- UPC: 719441173012
